MEA Industrial Metal Parts Cleaning Machine

Description

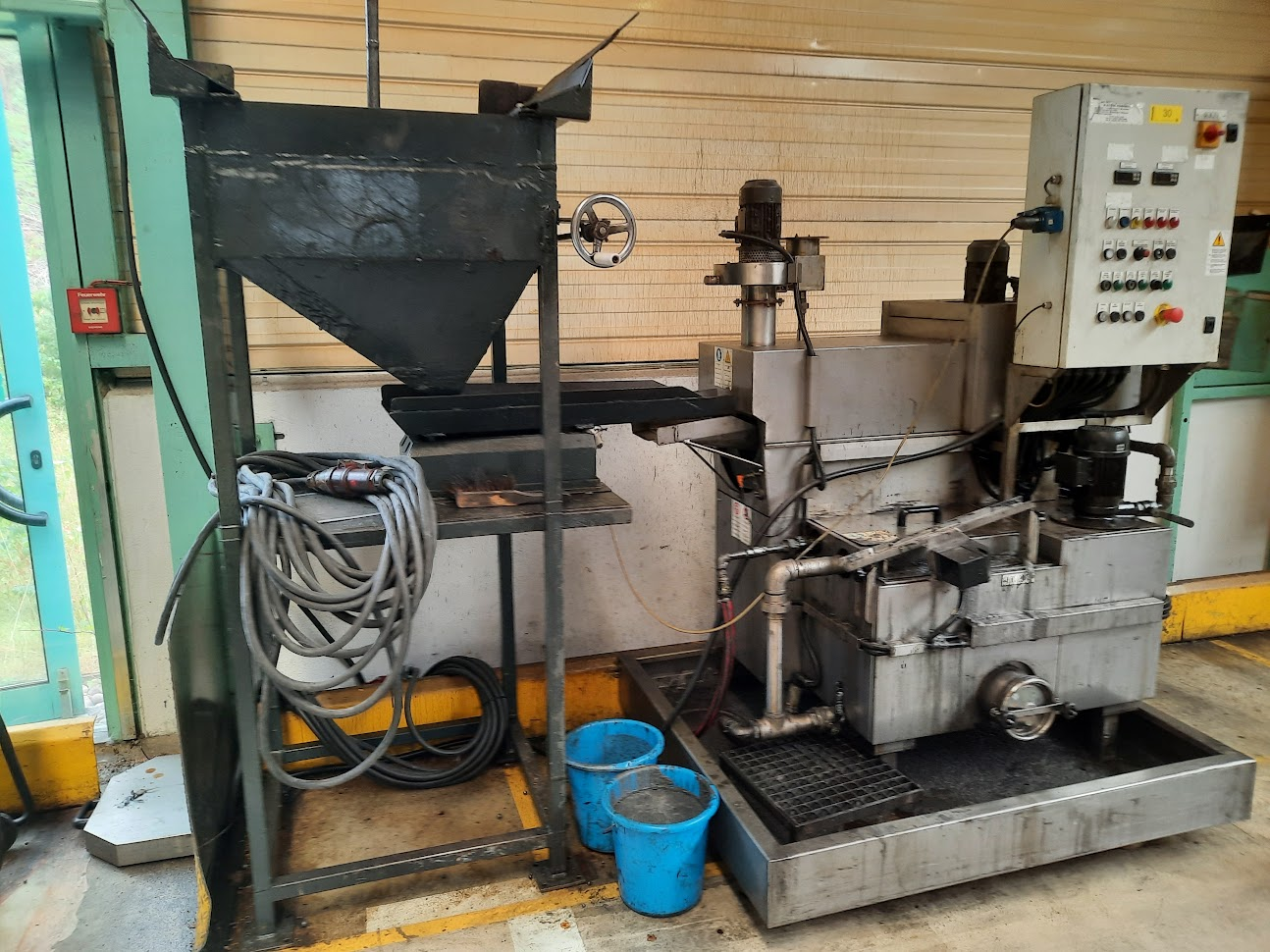

This MEA Oberflachen Reinigungstechnik industrial parts cleaning machine is a professional industrial washing and surface-cleaning system designed for the cleaning and treatment of metal components and industrial workpieces. The equipment is manufactured by MEA-Maschinen, a German specialist in industrial cleaning systems for metal parts and surface treatment. MEA's cleaning systems are designed for processes including degreasing, cleaning, rinsing, phosphating, passivation, preservation, pickling, paint stripping, and other surface-treatment applications. The machine is built as a dedicated industrial cleaning station combining a workpiece loading area, cleaning chamber, mechanical washing system, fluid-management equipment, drive components, pumps, piping, electrical controls, and a collection system for the cleaning medium. Its construction is intended to provide controlled and repeatable cleaning of industrial components before further manufacturing, assembly, coating, painting, maintenance, or refurbishment processes. The main working area incorporates a rotating or mechanically driven cleaning platform positioned beneath the cleaning equipment. Workpieces can be positioned in the working area and subjected to controlled cleaning operations. The rotating arrangement allows the cleaning process to reach different portions of the component surface while the cleaning equipment operates around the workpiece. A substantial cleaning-fluid collection and circulation system is integrated into the lower section of the machine. The system collects used cleaning liquid and directs it through the associated tank, filtration, pumping, and circulation equipment. This arrangement allows the cleaning medium to be managed within the machine rather than requiring a separate external washing arrangement. The machine incorporates a dedicated pump and motor assembly for circulating the cleaning medium. Pump-driven circulation is an important part of industrial parts-washing equipment because it allows cleaning fluid to be delivered consistently to the workpiece and returned to the machine's fluid-management system for continued operation. The cleaning system is equipped with a spray/flow-based washing arrangement, allowing cleaning fluid to be directed toward the workpiece during the cleaning cycle. Industrial spray cleaning is used to remove contaminants such as oil, grease, machining residues, dirt, and other surface contamination from manufactured components. MEA specifically manufactures industrial systems using spray and immersion cleaning technologies for metal parts. The machine's design is particularly relevant to metal-component cleaning. Industrial parts frequently require cleaning after machining, forming, assembly, maintenance, or other manufacturing operations. Removing oil, grease, chips, dirt, and process residues prepares the components for subsequent manufacturing stages and helps maintain the required surface condition. A large upper hopper or collection structure is integrated into the machine's working area. This provides a controlled enclosure and collection zone around the cleaning operation. The structure helps contain the cleaning process and directs fluids and residues toward the machine's collection system. The machine also incorporates an industrial electrical control cabinet equipped with multiple switches, indicator lights, control buttons, emergency-stop functions, and motor controls. This electrical system allows the operator to control the various functions of the cleaning equipment and coordinate the cleaning cycle. The control system provides a centralized operating interface for starting and stopping the machine, controlling the associated pumps and motors, and managing the cleaning equipment. Dedicated controls and indicator lights allow operators to monitor the operating condition of the system during production and maintenance activities. The machine's electrical and mechanical systems are integrated into a compact industrial installation. Motors, pumps, piping, valves, electrical wiring, and fluid tanks are arranged around the main cleaning area to create a complete parts-cleaning workstation. MEA-Maschinen specializes in water-based industrial cleaning systems, and its systems are designed around aqueous cleaning processes rather than relying exclusively on solvent-based cleaning. The company's product range includes chamber washing machines, drum washing machines, continuous washing systems, immersion washing systems, ultrasonic cleaning systems, and specialized cleaning installations. The machine is therefore suitable for applications where industrial components need to be cleaned efficiently as part of a manufacturing or maintenance process. Depending on the configuration and cleaning chemistry, systems in this category can remove oil, grease, dirt, machining residues, and other contaminants from metal surfaces. Industrial cleaning equipment of this type can be used for pre-cleaning, intermediate cleaning, final cleaning, maintenance cleaning, and surface preparation. MEA describes chamber washing systems as suitable for production and maintenance applications where both light and stubborn surface contamination must be removed. The machine can be incorporated into a larger production workflow where components arrive from machining or manufacturing operations, undergo cleaning, and then proceed to another stage such as inspection, assembly, coating, painting, plating, packaging, or storage. Proper cleaning can be particularly important before surface-treatment processes because residual oil and contamination can interfere with subsequent coating or finishing operations. The machine's fluid-management system is an important part of its operation. Cleaning liquid is collected after use and can be circulated through the system according to the machine's configured cleaning process. Depending on the installation, filtration, oil separation, fluid replenishment, temperature control, or other treatment systems may be incorporated to maintain the cleaning medium. The equipment also provides a controlled working environment compared with manual washing methods. Containing the cleaning process within a dedicated machine helps organize the cleaning operation and provides a defined area for handling cleaning fluids and contaminated components. The machine's construction allows it to be integrated into industrial production areas where regular cleaning of components is required. Its compact arrangement combines the cleaning mechanism, fluid handling, electrical controls, and supporting equipment within a single production installation. The manufacturer MEA-Maschinen GmbH has been active in industrial cleaning technology for more than five decades and specializes in systems for metal cleaning and surface treatment. Its equipment covers both smaller cleaning machines and complete automated cleaning systems. MEA's industrial cleaning technologies include spray cleaning, immersion cleaning, flood cleaning, drum washing, continuous washing, chamber washing, and ultrasonic cleaning. The appropriate process depends on the type of component, contamination, required cleanliness level, production volume, and downstream manufacturing requirements. For heavier industrial components, cleaning systems can be configured with suitable loading arrangements and handling equipment. MEA also develops customized cleaning systems for individual production requirements, allowing the equipment to be integrated into specific manufacturing processes. The machine's industrial construction also allows routine maintenance and servicing of the pump, motor, cleaning chamber, fluid tank, piping, valves, electrical controls, and associated mechanical components. Regular maintenance of these systems is important for maintaining consistent cleaning performance and reliable machine operation. The cleaning process can be adapted to the specific material and contamination being removed. Depending on the installed configuration, cleaning agents and operating parameters can be selected according to the required cleaning result. Industrial cleaning systems can also incorporate additional processes such as rinsing or other surface-treatment stages when configured with multiple treatment stages. The machine is particularly relevant to metalworking, mechanical engineering, automotive-component manufacturing, industrial machinery production, maintenance departments, fabrication, and general component manufacturing. These industries commonly require reliable removal of oil, grease, machining residues, and other contaminants from metal workpieces.
