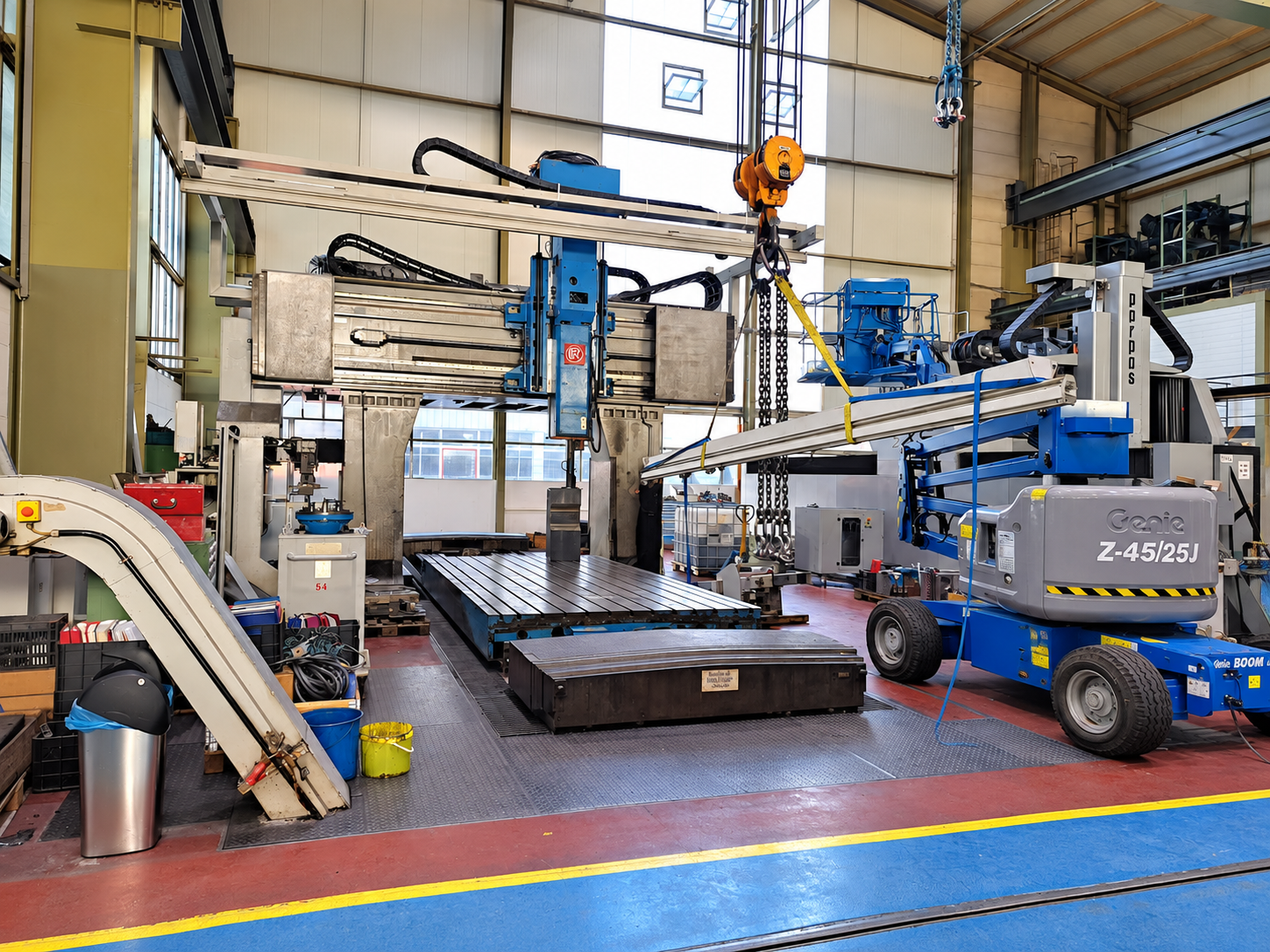

Large-Format Gantry CNC Machining Center

Description

This large-format gantry-type CNC machining system is a substantial industrial machine designed for machining and processing large, heavy, and complex workpieces. The machine is installed in a spacious industrial production facility and features a rigid gantry construction, an extensive machining table, large linear travel assemblies, a vertically oriented machining head, and integrated cable-management systems. Its overall configuration is suited to heavy-duty manufacturing environments where conventional machining centers may not provide sufficient working space or structural capacity. The machine consists of a large fixed structural frame with two substantial vertical supports connected by a heavy horizontal crossbeam. The gantry arrangement provides a wide working area and allows the machining head to travel across the workpiece. The structure is engineered around a large working envelope, making the machine suitable for components that require significant machining space in both length and width. A major feature of the machine is its large slotted machining table, visible prominently. The table is constructed from multiple heavy-duty sections and provides a substantial surface for securing large workpieces, fixtures, tooling arrangements, and production components. The table extends deep into the machine's working area, allowing large components to be positioned beneath the gantry and machining head. The main machining assembly is mounted on the horizontal gantry beam and incorporates a large vertical carriage. The carriage contains the machining head and associated mechanical systems required for controlled movement during machining operations. Linear guideways and screw-driven mechanisms are visible along the gantry structure, supporting precise positioning of the machining assembly. The visible mechanical arrangement demonstrates the machine's design for controlled multi-axis movement across a large working envelope. The machining head is mounted vertically and can be positioned along the gantry and vertical axis to access different areas of a workpiece. The substantial construction of the head assembly is consistent with a machine intended for industrial machining applications involving large components. The extensive protective and support structures around the machining head, together with flexible cable carriers that route electrical and control connections to the moving assemblies. The machine incorporates energy-chain/cable-carrier systems along the upper gantry and moving assemblies. These systems are designed to organize and protect electrical cables, control wiring, and other connections as the machining components move through their operating range. The presence of large cable chains along the gantry is characteristic of machinery requiring considerable travel and continuous movement of its machining assemblies. The machine's gantry and machining-head assembly. The large horizontal beam contains visible linear guideways and a substantial mechanical drive arrangement. The vertical machining unit is mounted to the moving carriage and includes a robust housing with an identification marking visible on its front. The mechanical construction indicates a machine designed around a large and rigid working structure rather than a compact machining-center configuration. The complete installation and demonstrates the scale of the machine relative to the surrounding production equipment. The machine occupies a significant area of the workshop and is positioned beneath a large overhead crane system. The overhead crane is marked ABUS, and lifting equipment is visible above the machine. This supporting infrastructure is particularly relevant in a facility handling large components, although the crane itself is separate from the machining machine. The installation also includes a Genie Z-45/25J boom lift positioned near the machine. This is auxiliary workshop equipment rather than part of the machining system. Its presence, together with the overhead lifting equipment, indicates that the surrounding facility is equipped for maintenance, assembly, inspection, and handling activities involving large industrial equipment and components. The machine's large open working area provides considerable flexibility for handling oversized workpieces. Its gantry configuration allows the machining head to travel over the table rather than requiring the workpiece to be moved through a conventional enclosed machining center. This type of architecture can be particularly useful for large fabricated structures, heavy engineering components, plates, frames, assemblies, and other components requiring substantial machining access. The visible table incorporates multiple parallel slots that can be used for workholding and fixture installation. Such a table arrangement provides flexibility when securing components of different dimensions and shapes. Proper workholding remains dependent on the individual application, component geometry, weight, and machining requirements. The machine is installed in a professional industrial workshop with substantial overhead clearance, large windows, dedicated floor areas, material-handling equipment, storage areas, and supporting machinery. The surrounding environment provides sufficient space for large-scale production and maintenance activities. The floor markings and dedicated working zones also help organize movement around the machine and other industrial equipment. The number of auxiliary systems around the machine, including electrical cabinets, tooling and storage equipment, cables, hydraulic or mechanical support equipment, and material-handling accessories. These components contribute to the overall production installation, although their exact relationship to the main machine should be confirmed from the machine documentation. The machine's robust gantry architecture and large working table make it particularly relevant to heavy engineering, large-component machining, fabrication, industrial equipment manufacturing, energy-sector components, transportation-related components, and other large-scale manufacturing applications. Its actual capabilities will depend on the installed spindle, tooling, axis configuration, CNC control, available travels, table capacity, and machine condition. The machine presents a substantial industrial machining platform with a rigid gantry structure, large working table, vertical machining head, linear guide systems, mechanical drive components, and extensive cable management. The combination of these features provides a configuration intended for controlled machining of large workpieces while maintaining accessibility to different areas of the component.
